Fast inspection
module diagnosis
cell balancing
low cost

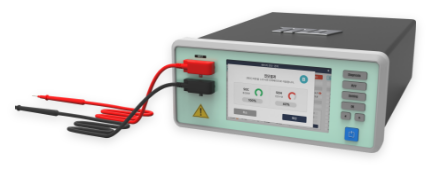

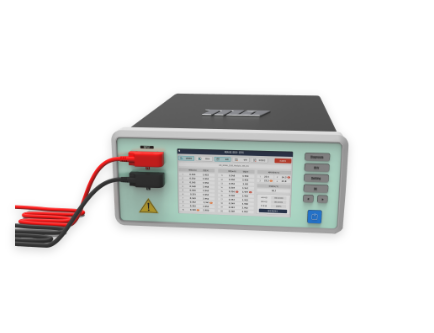

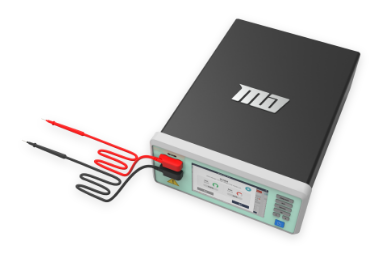

| Model | Portable BD |
|---|---|
| Input voltage | 220 VAC, Max 5A |
| Battery diagnostic channel | 3 – 12CH |
| Charging voltage | DC 9 – 96V |
| Charging current | DC 0 – 2A |
| Discharge current | - |
| Discharge method | None |
| Precision (voltage/current/temperature-%) | Within 5% of Cell voltage, temperature and current |
| Internal resistance measurement precision | Within 10% |
| Bidirectional Power(charge/discharge) | - |
| Direct cell measurement | Available |
| Voltage deviation between balancing cells | 10mV |
| Functions | OV/UV, overcurrent, overtemperature cutoff, battery SOH diagnosis |
| Diagnostic mode | Fast diagnosis/ standard diagnosis/ precision diagnosis through AI |
| Diagnostic function | Impedance tracking algorithm based on voltage, current, temperature, internal resistance, and power data |
